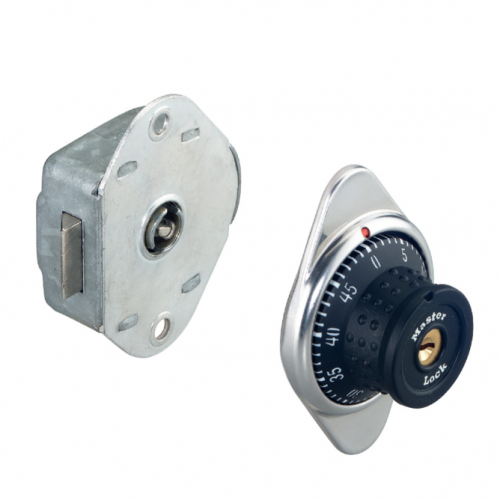

Cerradura de taquilla, Mastercombi, combinación numérica Montaje: Mano derecha

• Colour/finish: Rotary handle: Black, Lock case: zinc plated, chromatized, Lock case: Galvanized chromatizedrotary handle: Black
• Sistema de bloqueo: Con combinaciones numéricas
• Dim. (L x W x H): 50 x 23 x 68 mm
• Backset: 21 mm
• Model series: Mastercombi
• Ámbito de aplicación: Para sistemas de taquillas y guardarropas: Adecuado para instalación en puertas de acero de hasta 3 mm de espesor
• Material: Caja de la cerradura: Acero, Carcasa: Acero inoxidable, Manija giratoria: Plástico, Cilindro: Latón
• Operation: Opening the locker lock:1) turn two full revolutions to the right2) continue turning right to the first number3) turn one full turn to the left4) continue turning left to the second number5) turn right to the third number6) continue to turn to the right as far as possibleThe lock opens.Set locker lock to a different combination:1) turn one full turn to the right2) continue turning right and turn until you reach "0"3) insert override key and rotate 90° to the rightThe latchbolt is retracted.4) open door5) press and hold button on back of lock case6) turn rotary knob to the right by two graduation lines to "48"7) release button on back of lock case8) turn rotary knob to the right until the adjusting spring audibly engages9) remove override keyA document included in the scope of delivery specifies 5 combinations. If the combination is changed as described here, the next preset numeric combination is set.
• Functionality: The locker lock can be opened in two ways:With combination lock: Each lock is pre-set for 5 combinations that can be selected using the override key. The lock combinations are not based on related row combinations and therefore cannot be predicted.with override key: The override key opens the lock irrespective of the set number combination.
• Referencia de pedido: La llave de anulación y el juego de extensión para puertas de madera no se suministran. Por favor ordene por separado.
• Se suministra con: 1 cerradura de taquilla Mastercombi 2 tuercas con anillo de retención integrado 1 documento con las 5 combinaciones especificadas
